280 t Large-Engine Test Bench Air Isolation System | 32 APS530 Isolators and XSC-100E Digital Leveling Control

Large-engine test benches generate continuous and complex low-frequency excitation during operation. For a heavy floating foundation, the isolation system must provide stable load support while also supporting operating-height monitoring, leveling control, air-supply management and maintainability.

Project Conditions

• Floating-foundation mass: approximately 280 t
• Test-bench dimensions: approximately 12,000 x 3,500 mm
• Air isolators: 32 APS530 membrane-type air isolators
• Displacement monitoring: four laser displacement sensors
• Leveling control: XSC-100E digital leveling control unit

System Configuration and Engineering Design

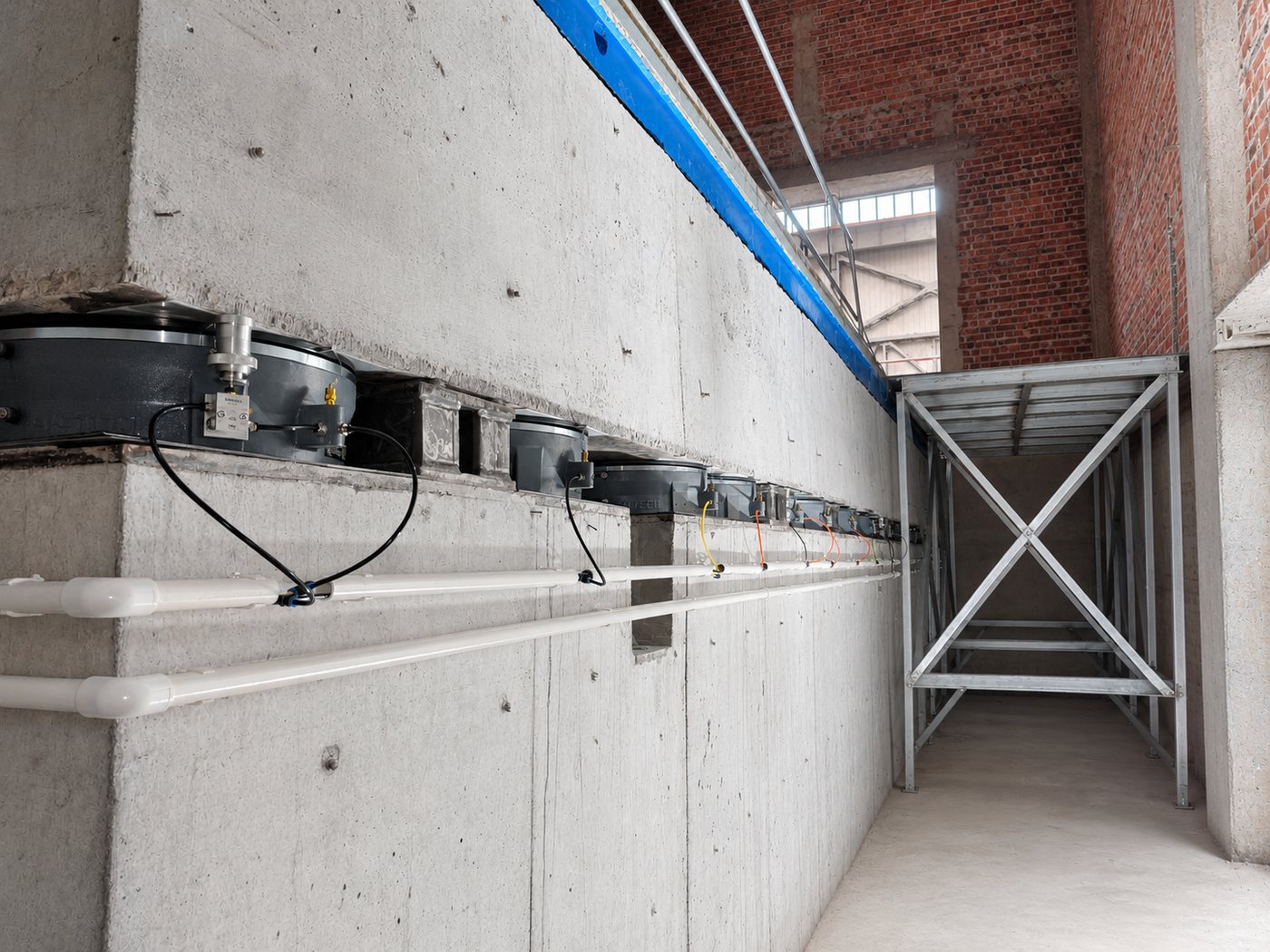

Based on the foundation mass, geometry, support locations and load distribution, AISTECH arranged 32 APS530 isolators in controlled support zones. The air-supply network connects the support zones so that the isolators can carry the heavy load at the specified operating height and provide a stable air-isolated base for test-bench operation.

Four laser displacement sensors monitor height variation at key points. The XSC-100E digital leveling control unit acquires displacement status and manages system leveling and operating conditions. This configuration helps engineers observe operating height, identify abnormal changes and manage air supply and leveling through one coordinated control system.

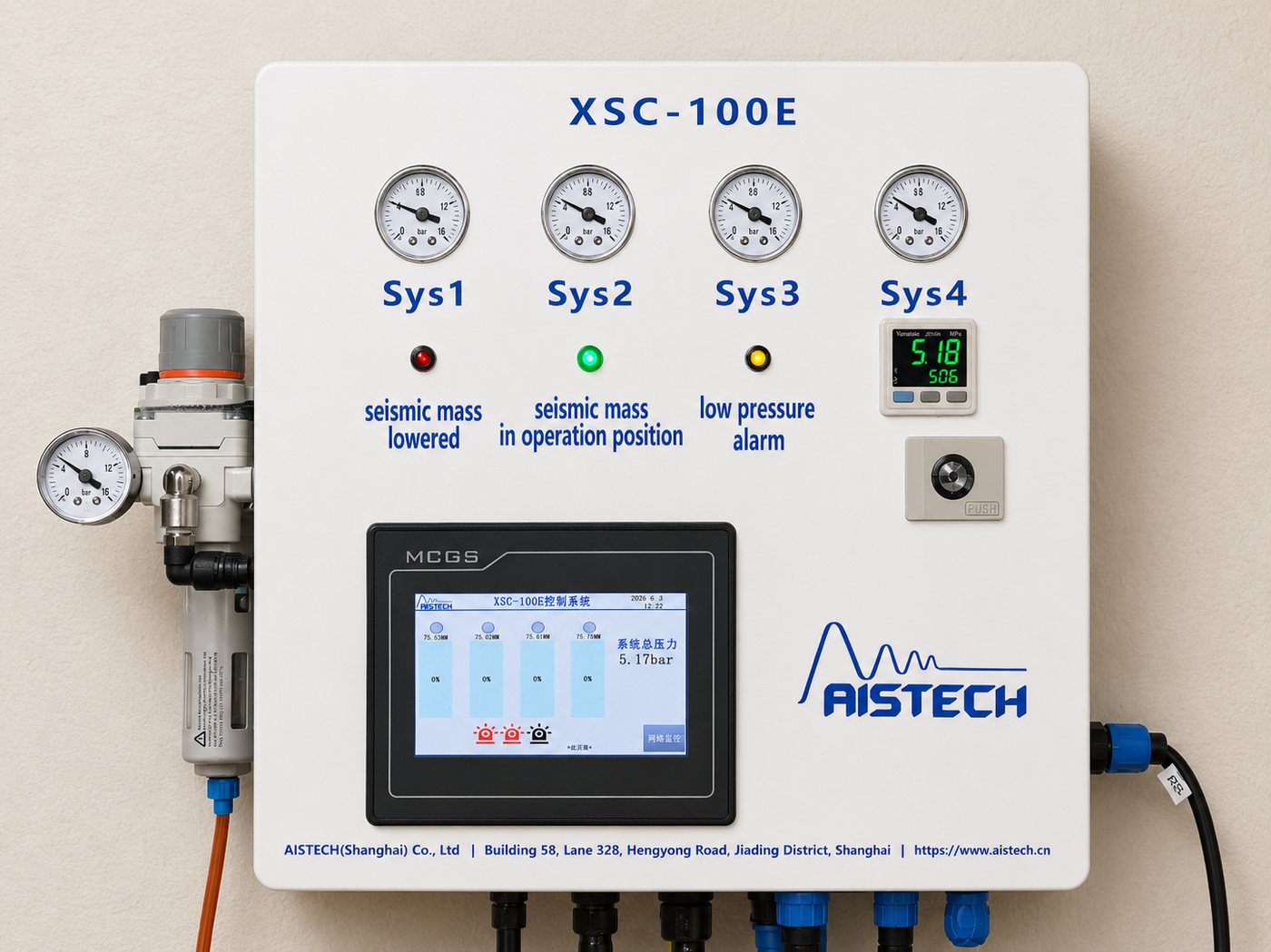

XSC-100E Digital Leveling Control

The XSC-100E works with four-point laser displacement monitoring to support operating-height observation, leveling control and system-status management for the large floating foundation. Digital control improves commissioning efficiency and provides clear status information for routine inspection and maintenance.

Project Value

• Stable heavy-load air support for an approximately 280 t floating foundation
• Reduced vibration transmission from the test bench to the building foundation and nearby equipment
• Improved system visibility through multi-point displacement monitoring and digital leveling
• Zoned arrangement and coordinated control for efficient commissioning, inspection and maintenance

Engineering note: Final isolation performance depends on the actual excitation characteristics, foundation structure, piping connections, equipment operating conditions, installation and commissioning. Final performance is subject to on-site testing and the applicable project acceptance criteria.

AISTECH can provide air-isolator selection, system layout, air-supply control, leveling monitoring, installation and commissioning support based on equipment mass, center of gravity, excitation frequency, allowable displacement, operating height and site constraints.
